雙溫控制器
更新：2019/12/2 20:04:51 點擊：
- 品牌 擴杰
- 型號
- 描述
控制柜內部雙溫控制器...
產品介紹

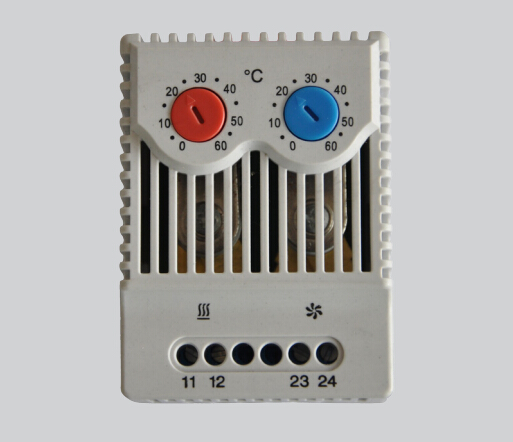

控制柜內部雙溫控制器
IInside the control cabinet dual temperature controller
•溫度設定范圍廣 •NO和NC整合在一起 •便于安裝 •高切換性能
•獨立設定溫度
一個溫控器含兩個溫度設定。
常開觸點：常用于監控過濾風扇，熱交換器或當溫度超過設定數值時閉合電路輸出信號。
常閉觸點：常用于連接加熱器，當溫度達到設定數值時斷開線路。加熱器和制冷設備可分別獨立切換，避免傳統切換引起的溫度偏差。
• wide temperature setting range • combined with NO and NC • Easy to install
• High switching performance • A thermostat contains two temperature setting.
Normally open contact: commonly using at the monitor filtering fan, heat exchanger, or output signal from value closed circuit when the temperature is over setting.
Normally closed contact: commonly using at connecting the heater, disconnecting line when the temperature reaches setting. Heater and refrigeration equipment respectively independent switch, avoid the temperature variation caused by traditional switch.
|
溫控范圍 |
No/Nc:0-60℃ |
|||
|
切換溫度公差 |
7K(+4K公差) |
|||
|
感應元件 |
雙金屬感溫材料 |
|||
|
接觸形式 |
突跳式接觸頭 |
|||
|
接觸電阻 |
＜10mΩ |
|||
|
使用壽命 Life |
＞100,000周期 > 100,000 cycles |
|||
|
最大切換容量 |
250VAC,10(2)A |
|||
|
電氣連接 |
4極接線柱，最大夾緊扭矩0.5Nm 鋼性線2.5mm2,多 |
|||
|
安裝 Installation |
35mm DIN導軌安裝 35mm DIN rail mounting |
|||
|
外殼 Shell |
UL94 V-O塑料，淺灰 UL94 V-O plastic, light gray |
|||
|
尺寸 Size |
67x50x46mm |
|||
|
重量 Weight |
90g |
|||
|
固定位置 Fixed position |
隨意 Random |
|||
|
操作/儲存溫度 |
-20℃至+80℃ |
|||
|
保護等級 |
IP20 |
|||
|
|
|
|
|
|
|
訂貨號 order No. |
設定范圍 Setting range |
設定范圍 Setting range |
||
|
WK002 |
連接斷開器（常閉） |
0℃至+60℃ |
連接斷開器（常開） |
0℃至+60℃ |
