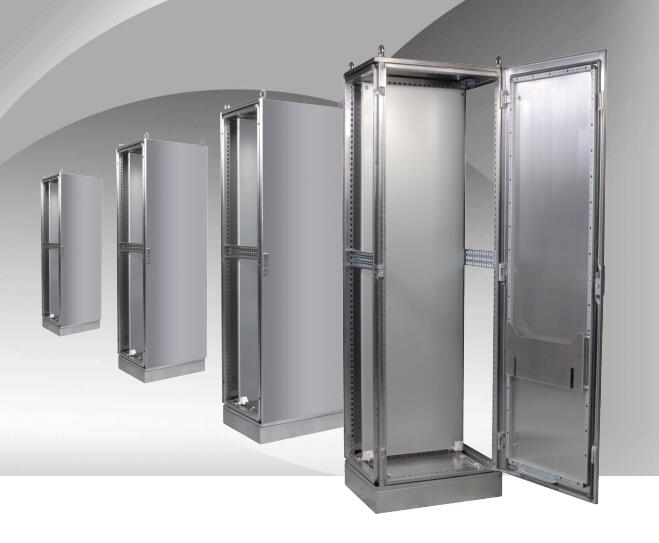

BPS不銹鋼控制柜
更新：2019/12/2 20:00:56 點擊：
- 品牌 擴杰
- 型號 BPS
- 描述
...
產品介紹
產品特點 Features of product
● 組合式電柜，適宜并柜使用
● 頂板可以移去，側板可以脫卸，更易于工作的便捷性
● 門板離地面高，約25mm，確保開門靈活順暢

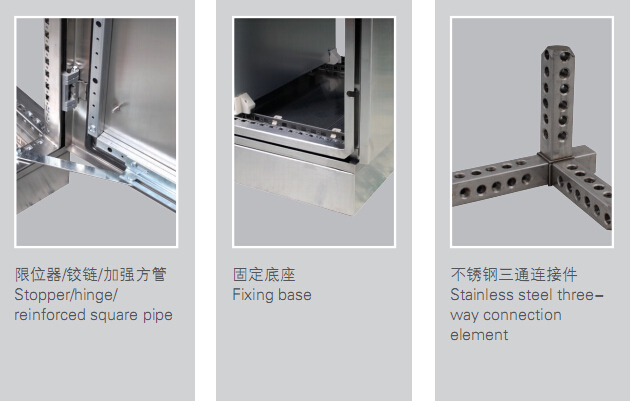

● 獨特的九折型材配合高強度的不銹鋼三通連接件焊接而成的主體框架確保柜體的高強度
● 特殊的門板方管加強系統可以用螺絲固定在門板上，便于拆卸
● 框架上密布的25mm 間距模數孔確保安裝的靈活性、通用性
● 鍍鋅安裝板可以利用塑料滑塊通過導軌從正面推入柜內，且兩邊有U型折邊使安裝板更牢固和更便于搬運
● 專業的不銹鋼岔道鎖、不銹鋼承重吊環以及各種功能性的附件彰顯柜體豪華品質
● Combined electric cabinet, suitable for combination
● The top plate is removable and the side plate is demountable, making work easier and simpler
● Ground clearance of door plate is sufficient, about 25mm, ensuring flexibility and smoothness of door opening.
● The main body frame specially made of nine-fold section and high-strength stainless steel three-way connection elements through welding ensures high strength of cabinet body.
● Special door plate square pipe reinforcement system can be fixed on the door plate with screws, easy for dismantlement.
● Module holes densely distributed at 25mm spacing on the frame guarantee the flexibility and universality of installation
● The mounting plate can be pushed into the cabinet from the front through guide rail by making use of plastic sliders. U-shape folded edges at the two sides facilitate fastening and handling of the mounting plate.
● Professional stainless steel turnoff lock, stainless steel bearing suspension loops and other accessories of various functions bring out luxury character of cabinet body.
|
序號 |
訂貨號 |
側板訂貨號 |
寬度 |
高度 |
深度 |
|
1 |
BPS601840304 |
BPS1840304 |
600 |
1800 |
400 |
|
2 |
BPS601850304 |
BPS1850304 |
600 |
1800 |
500 |
|
3 |
BPS601860304 |
BPS1860304 |
600 |
1800 |
600 |
|
4 |
BPS602040304 |
BPS2040304 |
600 |
2000 |
400 |
|
5 |
BPS602050304 |
BPS2050304 |
600 |
2000 |
500 |
|
6 |
BPS602060304 |
BPS2060304 |
600 |
2000 |
600 |
|
7 |
BPS602080304 |
BPS2080304 |
600 |
2000 |
800 |
|
8 |
BPS602260304 |
BPS2260304 |
600 |
2200 |
600 |
|
9 |
BPS801840304 |
BKP1840304 |
800 |
1800 |
400 |
|
10 |
BPS801850304 |
BPS1850304 |
800 |
1800 |
500 |
|
11 |
BPS801860304 |
BPS1860304 |
800 |
1800 |
600 |
|
12 |
BPS802040304 |
BPS2040304 |
800 |
2000 |
400 |
|
13 |
BPS802050304 |
BPS2050304 |
800 |
2000 |
500 |
|
14 |
BPS802060304 |
BPS2060304 |
800 |
2000 |
600 |
|
15 |
BPS802080304 |
BPS2080304 |
800 |
2000 |
800 |
|
16 |
BPS802260304 |
BPS2260304 |
800 |
2200 |
600 |
|
17 |
BPS101840304 |
BPS1840304 |
1000 |
1800 |
400 |
|
18 |
BPS121840304 |
BPS1840304 |
1200 |
1800 |
400 |
|
19 |
BPS121850304 |
BPS1850304 |
1200 |
1800 |
500 |
|
20 |
BPS121860304 |
BPS1860304 |
1200 |
1800 |
600 |
|
21 |
BPS122040304 |
BPS2040304 |
1200 |
2000 |
400 |
|
22 |
BPS122050304 |
BPS2050304 |
1200 |
2000 |
500 |
|
23 |
BPS122060304 |
BPS2060304 |
1200 |
2000 |
600 |
|
24 |
BPS122080304 |
BPS2080304 |
1200 |
2000 |
800 |
|
25 |
BPS122260304 |
BPS2260304 |
1200 |
2200 |
600 |
|
26 |
BPS102050304 |
BPS2050304 |
1000 |
2000 |
500 |
|
27 |
BPS102060304 |
BPS2060304 |
1000 |
2000 |
600 |
