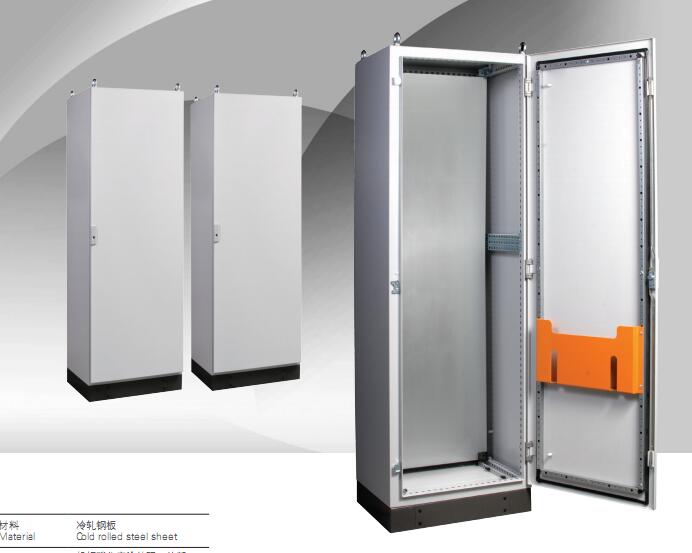

ES控制柜
更新：2019/12/2 20:01:23 點擊：
- 品牌 擴杰
- 型號 ES
- 描述
...
產品介紹
產品特點 Features of product
● 獨立式電柜，不適宜并柜使用
● 門板離地面高，約25mm，確保開門靈活順暢

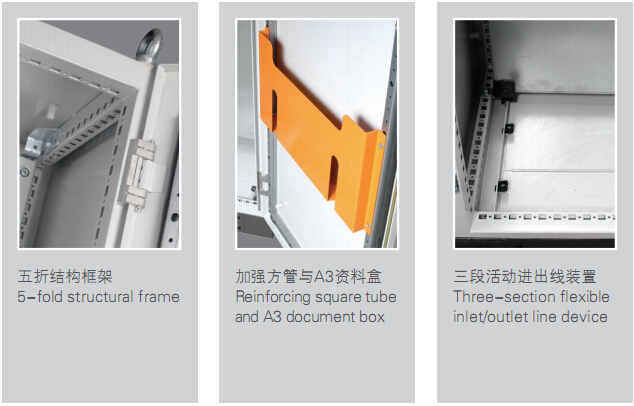

● 獨特的五折型材整體焊接而成的主體框架不但確保柜體的高強度而且使柜體的防護等級達到IP55
● 特殊的門板方管加強系統可以用螺絲固定在門板上，便于拆卸
● 框架上密布的25mm 間距模數孔確保安裝的靈活性、通用性
● 鍍鋅安裝板可以利用塑料滑塊通過導軌從正面推入柜內，且兩邊有U型折邊使安裝板更牢固和更便于搬運
● Stand-alone electric cabinet, inapplicable for cabinet incorporation
● Ground clearance of door plate is sufficient, about 25mm, ensuring flexibility and smoothness of door opening.
● IP55Unique main body frame integrally welded with 5-fold sections ensures high strength and IP55 of cabinet body
● Special door plate square tube reinforcing system can be fixed on door plate by screws for easy disassembly
● Modular holes with a spacing of 25mm on the frame ensures flexibility and universality of installation
● The mounting plate can be pushed into the cabinet by plastic slide through rail; U flanges on both sides allow firmer mounting plate and easier handling
|
序號 |
訂貨號(RAL 7035) |
訂貨號(RAL 7032) |
寬度 |
高度 |
深度 |
|
1 |
ES601640500 |
ES601640600 |
600 |
1600 |
400 |
|
2 |
ES601650500 |
ES601650600 |
600 |
1600 |
500 |
|
3 |
ES601840500 |
ES601840600 |
600 |
1800 |
400 |
|
4 |
ES601850500 |
ES601850600 |
600 |
1800 |
500 |
|
5 |
ES602050500 |
ES602050600 |
600 |
2000 |
500 |
|
6 |
ES801650500 |
ES801650600 |
800 |
1600 |
500 |
|
7 |
ES801840500 |
ES801840600 |
800 |
1800 |
400 |
|
8 |
ES801850500 |
ES801850600 |
800 |
1800 |
500 |
|
9 |
ES802050500 |
ES802050600 |
800 |
2000 |
500 |
|
10 |
ES802060500 |
ES802060600 |
800 |
2000 |
600 |
|
11 |
ES101840500 |
ES101840600 |
1000 |
1800 |
400 |
|
12 |
ES121650500 |
ES121650600 |
1200 |
1600 |
500 |
|
13 |
ES121840500 |
ES121840600 |
1200 |
1800 |
400 |
|
14 |
ES122050500 |
ES122050600 |
1200 |
2000 |
500 |
